JIB Crane

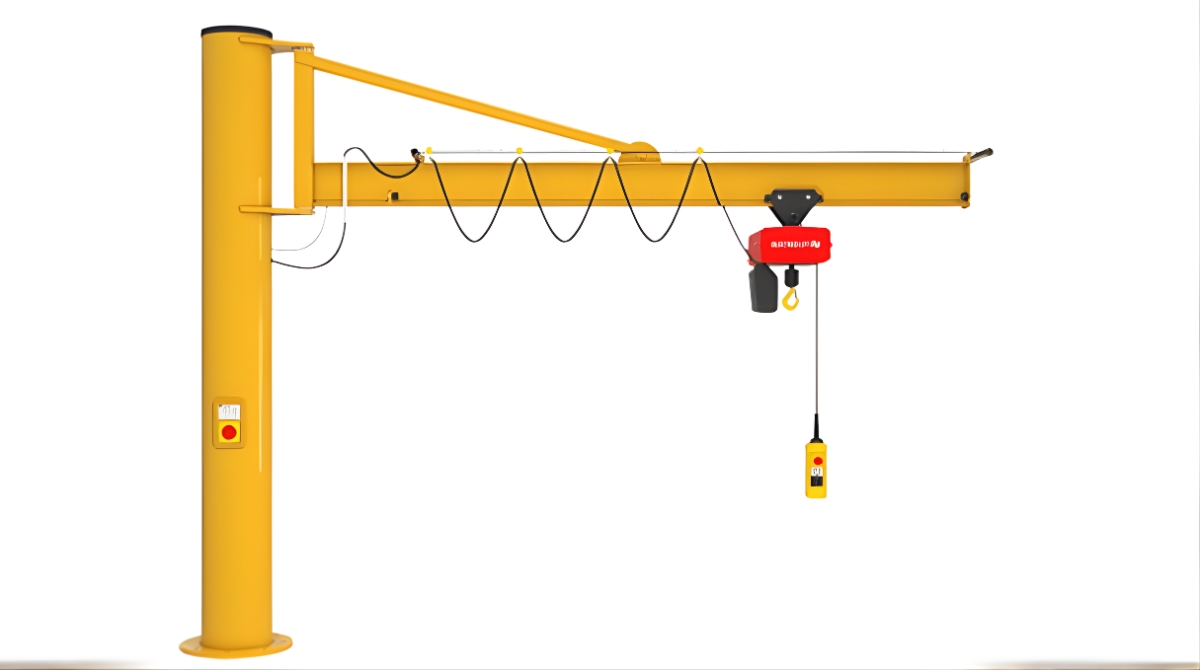

Pillar Mounted JIB Crane is designed as a self-supporting unit, mounted either on the floor or foundation. This structure helps withstand bending stress without boom deflection. The column is reinforced with heavy base gussets mounted on a robust base plate, while the jib head is constructed using two heavy side plates with reinforcement for strength and durability.

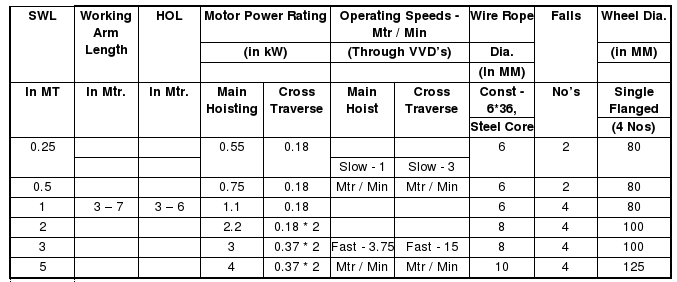

Technical Specifications
| SWL In MT |
Working Arm Length In Mtr. |
HOL In Mtr. |
Motor Power Rating (in kW) |
Operating Speeds - Mtr / Min (Through VVD’s) |
Wire Rope Dia. (in MM) |
Falls No’s |
Wheel Dia. Single Flanged (4 Nos) |
||
|---|---|---|---|---|---|---|---|---|---|
| Main Hoisting | Cross Traverse | Main Hoist | Cross Traverse | ||||||
| 0.25 | 0.55 | 0.18 | Slow - 1 | Slow - 3 | 6 | 2 | 80 | ||
| 0.5 | 0.75 | 0.18 | Mtr / Min | 6 | 2 | 80 | |||
| 1 | 3 – 7 | 3 – 6 | 1.1 | 0.18 | Mtr / Min | 6 | 4 | 80 | |
| 2 | 2.2 | 0.18 * 2 | Mtr / Min | 8 | 4 | 100 | |||
| 3 | 3 | 0.37 * 2 | Fast - 3.75 | Fast - 15 | 8 | 4 | 100 | ||
| 5 | 4 | 0.37 * 2 | Mtr / Min | 10 | 4 | 125 | |||
